RESCUE KIT:
helicopter
CO₂

DUAL-BAG BUOYANCY FOR RAPID VESSEL SUPPORT

Rescue Kit: Helicopter is a portable, dual-bag buoyancy system developed for rapid vessel stabilisation and recovery. Housed in a rugged hardcase, it includes two lift bags with integrated CO₂ cylinders, manual pull-pin activation and robust attachment hardware. The system provides up to 1,100 kg of combined buoyancy and is ready for immediate deployment without an external air supply or permanent installation.

NATO-certified technology used by the Norwegian Coast Guard, Royal Norwegian Navy and the Norwegian Sea Rescue Society.
[SEE TECHNICAL OVERVIEW SECTION]
TRUSTED IN OPERATIONS
FIELD DOCUMENTATION

TECHNOLOGY IN PRACTICE

Selected field documentation demonstrating the lift-bag technology used across the Rescue Kit range.

FIELD CASE

STABILISATION AND RECOVERY

SYSTEM SHOWN
RESCUE KIT: HARDCASE COMPRESSED AIR AND CO₂
SHARED TECHNOLOGY
LIFT-BAG CONSTRUCTION AND DEPLOYMENT PRINCIPLES USED ACROSS THE RESCUE KIT RANGE
FIELD DOCUMENTATION
01
/ 16
<
>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
Salvage operation
Flotation support during vessel recovery.
<>
RESCUE KIT: HELICOPTER
SELECT A NUMBERED COMPONENT TO VIEW DETAILS.
01
02
03
04
05
CO₂
lift bags included
2
Total buoyancy
1,100 kg
System weight
22 kg

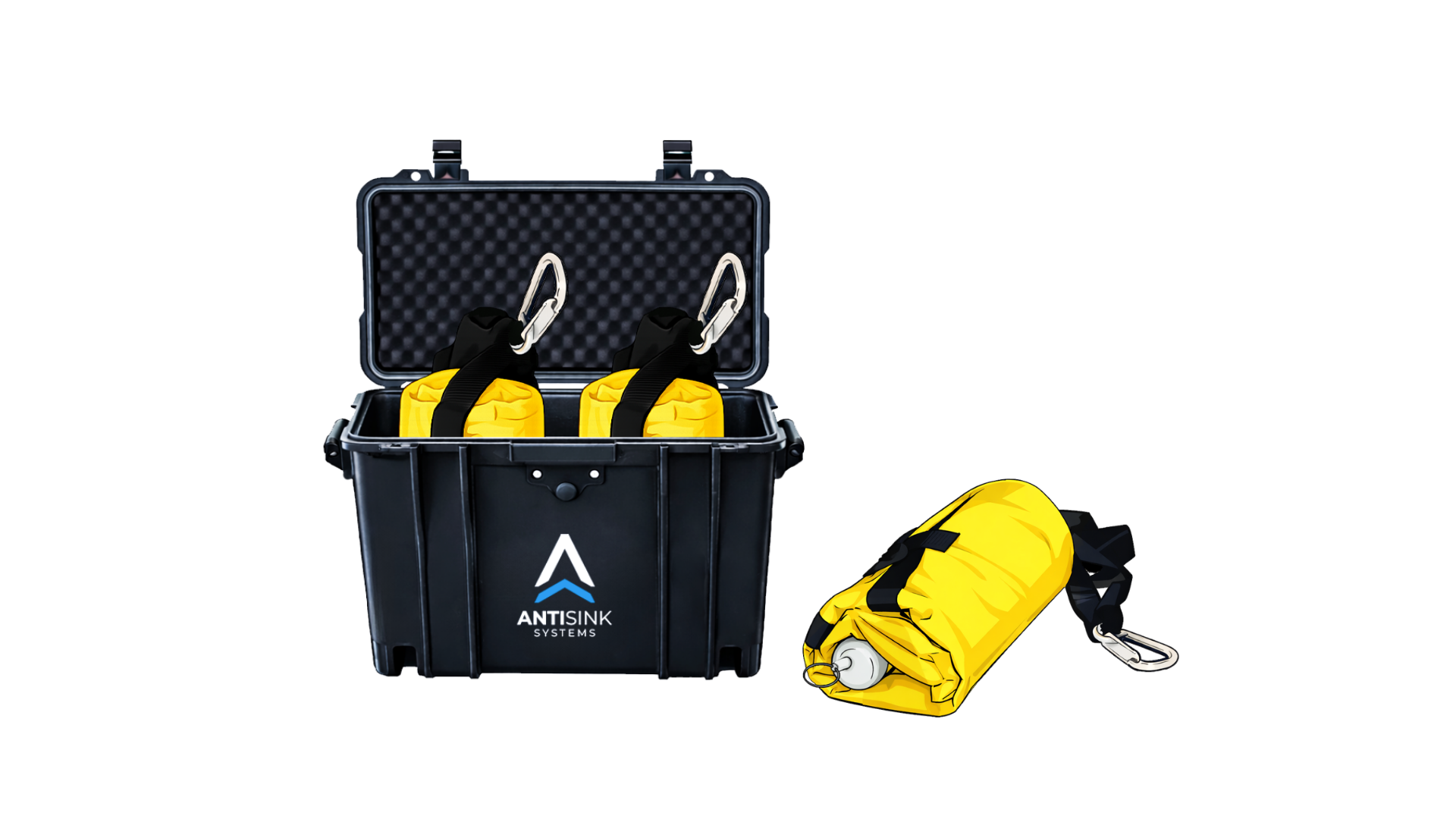

SYSTEM COMPONENTS
01
TRANSPORT CASE

Rugged, IP66-rated hardcase protects the system during transport, storage and deployment.

02
Two Lifting Bags

Provide up to 550 kg of buoyancy each for vessel stabilisation and recovery.

03
INTEGRATED CO₂ CYLINDERS

Supplies the gas required for rapid inflation of the lifting bag.

04
Attachment Straps

Integrated straps and heavy-duty carabiners secure the bags to suitable attachment points.

05
Pull-Pin Activation

Enables simple and immediate manual activation when required.

TECHNICAL OVERVIEW

DUAL-BAG BUOYANCY FOR RAPID DEPLOYMENT

A portable, self-contained system designed for rapid vessel stabilisation and recovery. Two lift bags, each with an integrated CO₂ cylinder and manual pull-pin activation, provide up to 1,100 kg of combined buoyancy. The complete system is stored in a rugged transport case and can be deployed without an external gas supply.

rescue kit: helicopter (CO₂)
SYSTEM TYPE
Portable dual-bag buoyancy, stabilisation and recovery system
APPLICATIONS
Emergency vessel support, stabilisation and recovery
LIFT BAGS
2 integrated lift bags
BUOYANCY PER BAG
550 kg
TOTAL BUOYANCY
Up to 1,100 kg
SYSTEM WEIGHT
22 kg
Pressure Relief Valves
1 per bag
BAG CONSTRUCTION
High-strength reinforced construction with flame-retardant properties
ACTIVATION
Manual pull-pin activation
GAS SUPPLY
Integrated CO₂ cylinder in each lift bag
ATTACHMENT
Integrated straps with heavy-duty carabiners
TRANSPORT SYSTEM
Rugged, IP66-rated hardcase
OPERATIONAL USE
Immediate deployment in emergency situations
